Valve Operation that requires no effort

Waltr V is an automatic valve controller that manages water inflow to multiple tanks using one pump, with each tank equipped with its own Waltr V. Installed on the inflow pipe of each tank, it regulates water flow by opening or closing the valves. When a tank is full, the valve for that tank closes automatically to prevent overflow, while the other valves remain open until their tanks are filled.

Automate your Valve

Waltr V - Wireless Valve Controller
Waltr V - Wireless Valve Controller
Waltr V - Wireless Valve Controller

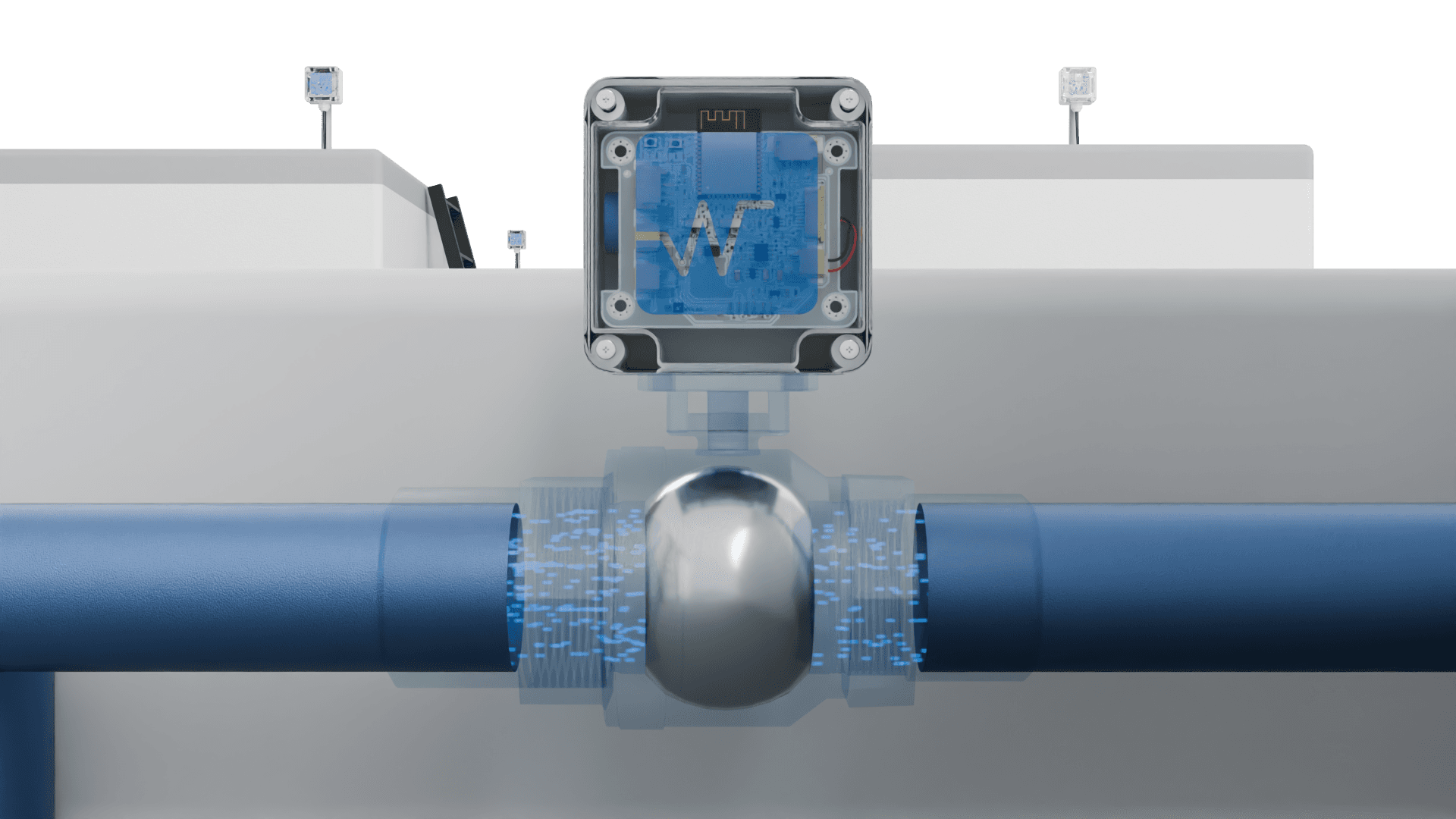

Fits in the Water Line

This automatic valve control system integrates effortlessly into your water distribution setup, ensuring smooth, uninterrupted operation. It precisely controls the flow of water, adapting to real-time needs.

Waltr V App Interface
Waltr V App Interface
Waltr V App Interface

Enhanced Operation with Waltr A and Waltr C

Waltr V, A, and C work together to control water flow. Waltr A is a water level monitor, Waltr C is an automatic pump controller, and Waltr V manages valves to ensure appropriate water levels.

Realtime Valve Control Lowpoly 3D representation
Realtime Valve Control Lowpoly 3D representation
Realtime Valve Control Lowpoly 3D representation

Real-Time Valve Control

All valve activity is tracked in the Waltr app. With real-time updates, you can review historical data on valve operations.

Features

Realtime Wireless working of Waltr A - water level montior - Waltr C - Motor Controller and Waltr V - Valve Controller
Realtime Wireless working of Waltr A - water level montior - Waltr C - Motor Controller and Waltr V - Valve Controller

Fully Automated for Effortless Performance

Waltr V operates automatically, requiring no manual intervention. Its advanced valve automation technology ensures smooth and reliable performance.

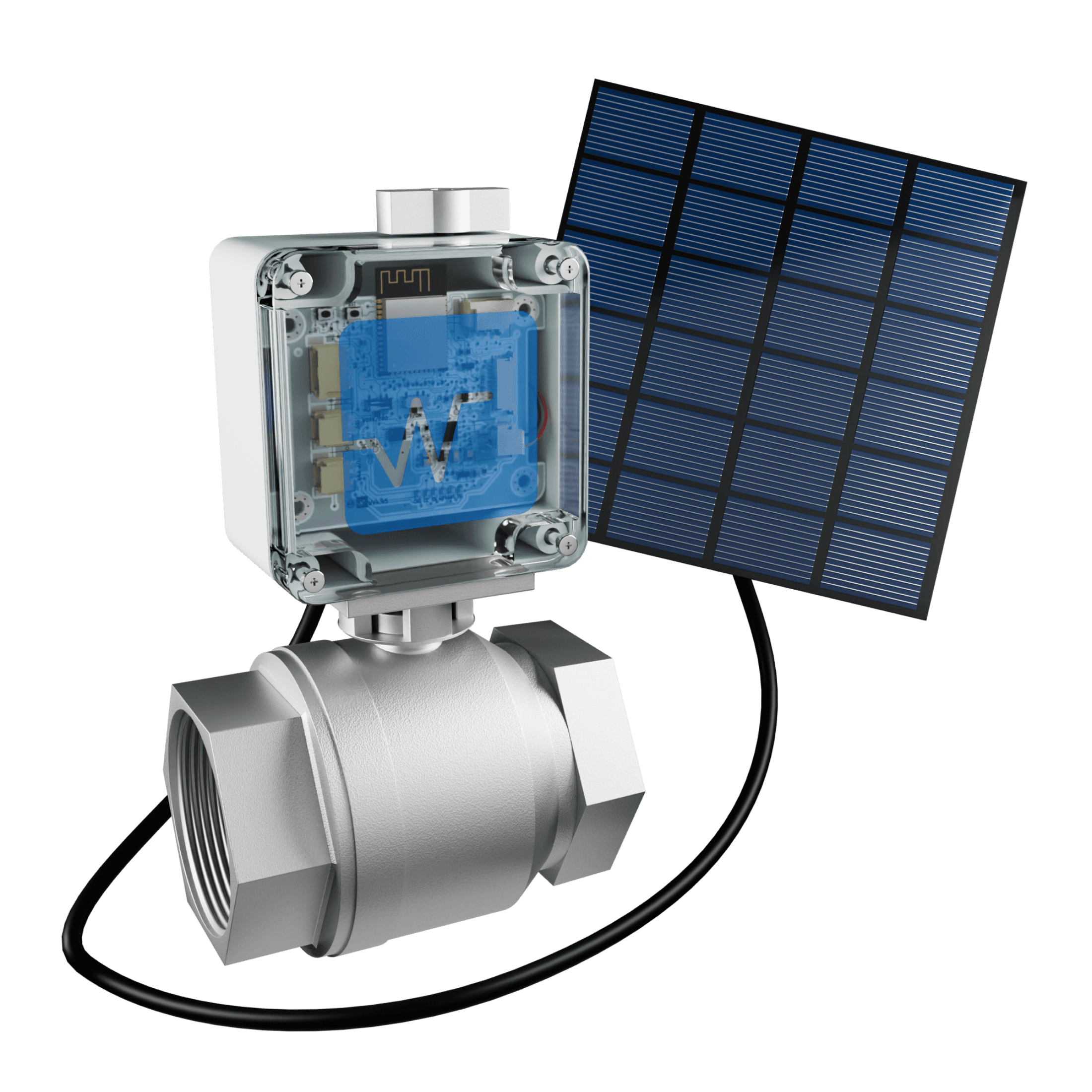

Waltr V - Automatic vavle controller with solar panel
Waltr V - Automatic vavle controller with solar panel

Wireless Functionality for Easy Operation

This auto valve uses wireless technology, eliminating the need for physical wiring. It is solar-powered, offering flexibility and easy installation.

Internet-Connected for Remote Monitoring and Control

With IoT connectivity, this smart valve controller lets you monitor and control the system remotely through the Waltr app, providing access from anywhere.

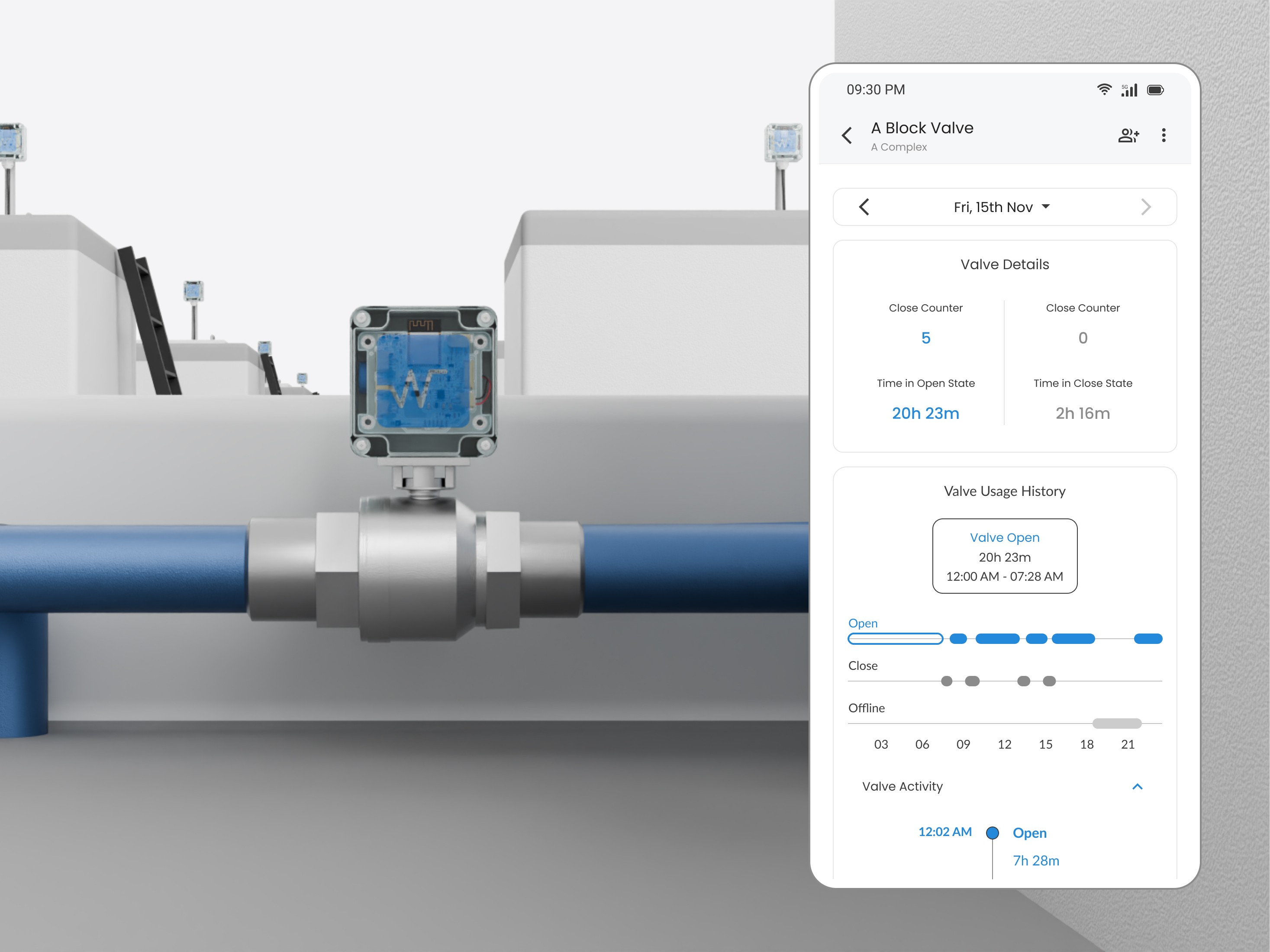

Waltr V - Autoamtic Valve Controller with remote monitoring of the valve operation and history
Waltr V - Autoamtic Valve Controller with remote monitoring of the valve operation and history

Technical Specifications

2 Watt

Solar Panel

Stainless

Steel

Ball Valve

Stainless

Steel

Ball Valve

2.4 GHz

WIFI 802.11 b/g/n

2600

mAH Battery

Less Than

Max 10NM

and 1.6Mpa

Less Than

20 Seconds

open/ close

Less Than

Max 10NM

and 1.6Mpa

Internet Connected

Fully Remote Monitoring

Internet Connected

Fully Remote Monitoring

Dimensions

Waltr V: 82×80×55 mm, 315 g
Solar Panel: 110×110×3 mm, 80 g

Torque & Work Pressure

Torque &
Work Pressure

Torque &
Work Pressure

Max 10NM and 1.6Mpa
Open/Close time <20 seconds

Range 10 cm to 2000 cms Accuracy upto 2 mm

Battery

Rechargeable Li-Ion Battery
Capacity 2600 mAH

Wireless

Wi Fi 802.11 b/g/n
2.4GHz

App Requirements

App
Requirements

App
Requirements

Android 5.0 Lollipop /
iOS 10 or newer OS

Package Contents

Package
Contents

Waltr V Device
Solar Panel / DC Adapter

Note: Requires Waltr A and Waltr C to make a water system fully automatic
